  • FSK-3916

壓電蜂鳴器FSK-3916

產品名稱 : FSK-3916

類型 : 壓電蜂鳴器

驅動方式 : 有源蜂鳴器

工藝 : 插針蜂鳴器

尺寸范圍 : >30mm

詳細說明:

A. SCOPE
This specification applies piezo buzzer, FSK-3916

B. SPECIFICATION

No.

Item

Unit

Specification

Condition

1

Oscillation Frequency

KHz

3.4±0.5


2

Operating Voltage

VDC

7 ~12


3

Rated Voltage

VDC

9


4

Current Consumption

mA

MAX. 20

at 7.5V

5

Sound Pressure Level

dB

MIN. 90

at 30cm at Rated Voltage

6

Tone Nature


Single


7

Operating Temperature

-20~ +60


8

Storage Temperature

-30 ~ +70


9

Dimension

mm

Φ39 x H16

See appearance drawing

10

Weight (MAX)

gram

12


11

Housing Material


ABS(Black)


12

Leading Pin


 Tin Plating (Sn)

See appearance drawing

13

Environmental
Protection Regulation


 RoHS



C. APPEARANCE DRAWING


Tol : ± 0.5      Unit: mm


D.TESTING METHOD
Standard Measurement conditions
Temperature:25±2℃  Humidity:45-65%

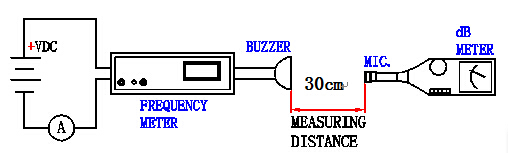

Acoustic Characteristics:
The oscillation frequency, current consumption and sound pressure are measured

by the measuring instruments shown below 30

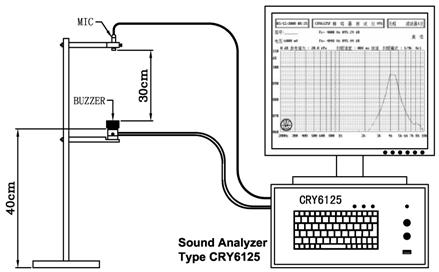

In the measuring test, buzzer is placed as follows:



E. VOLTAGE / CURRENT / SOUND PRESSURE CHARACTERISTICS

F. RELIABILITY TEST

NO.

ITEM

TEST CONDITION AND REQUIREMENT

1

High Temperature
Test (Storage)

After being placed in a chamber with 702℃ for 96 hours and then being placed in normal condition for 2 hours.
Allowable variation of SPL after test:
10dB.

2

Low Temperature
Test (Storage)

After being Placed in a chamber with -302℃ for 96 hours and then being placed in normal condition for 2 hours.
Allowable variation of SPL after test:
10dB.

3

Humidity Test

After being Placed in a chamber with 90-95% R.H. at 402℃ for 96 hours and then being placed in normal condition for 2 hours.
Allowable variation of SPL after test:
10dB.

4

Temperature Cycle
Test

The part shall be subjected to 5 cycles. One cycle shall be consist of:


Allowable variation of SPL after test: 10dB.

5

Drop Test

Drop on a hard wood board of 4cm thick, any directions ,6 times, at the height of 75cm .
Allowable variation of SPL after test:
10dB.

6

Vibration Test

After being applied vibration of amplitude of 1.5mmwith 10 to 55 Hz band of vibration frequency to each of 3 perpendicular directions for 2 hours .
Allowable variation of SPL after test:
10dB.

7

Solderability
Test

Lead terminals are immersed in rosin for 5 seconds and then immersed in solder bath of +3005℃ for 31 seconds .
90% min. lead terminals shall be wet with solder
(Except the edge of terminals).

8

Terminal Strength
Pulling Test

The force of 9.8N(1.0kg) is applied to each terminal in axial direction for 10 seconds.
No visible damage and cutting off.

TEST CONDITION.
Standard Test Condition        :      a) Temperature : +5 ~ +35℃  b) Humidity : 45-85%        c) Pressure : 860-1060mbar
Judgment Test Condition       :      a) Temperature : +25 ± 2℃    b) Humidity : 60-70%        c) Pressure : 860-1060mbar

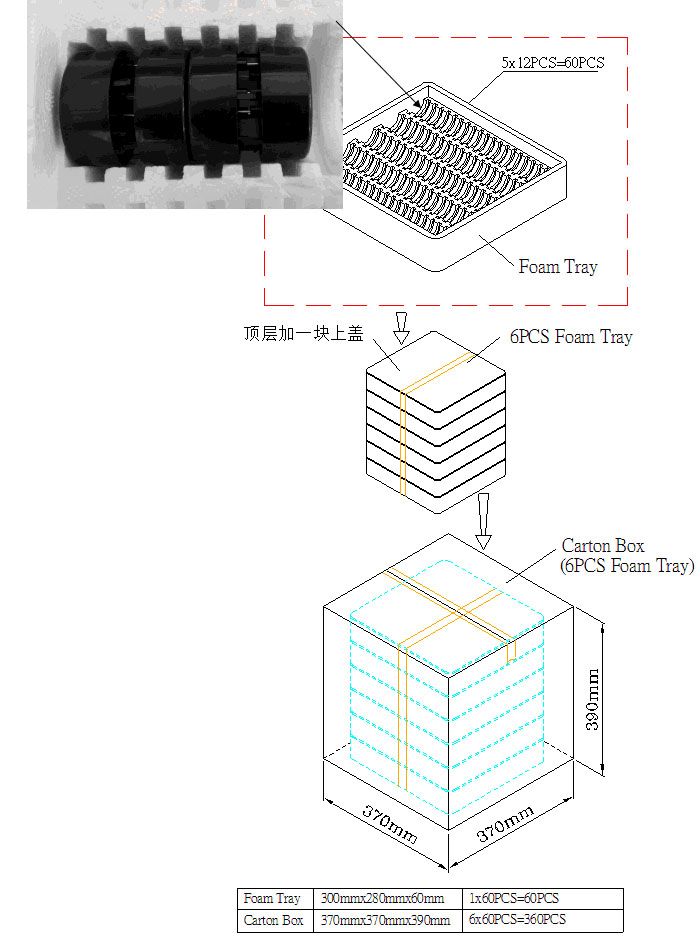

G. PACKING STANDARD

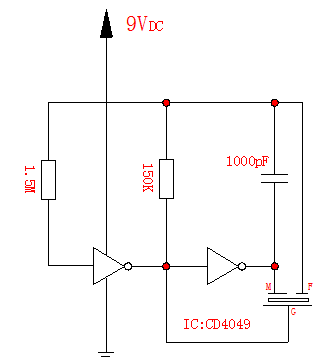

H. Drive Circuit
